| Tên thương hiệu: | CHG |
| Số mẫu: | CB-PC-06 |
| MOQ: | 1 bộ |
| giá bán: | 5,000-10,000 USD |
| Điều khoản thanh toán: | L/C, D/P, D/A, Liên minh phương Tây, T/T, Moneygram |
| Khả năng cung cấp: | 1000 bộ mỗi năm |

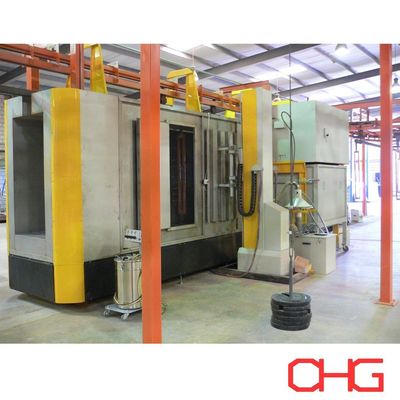

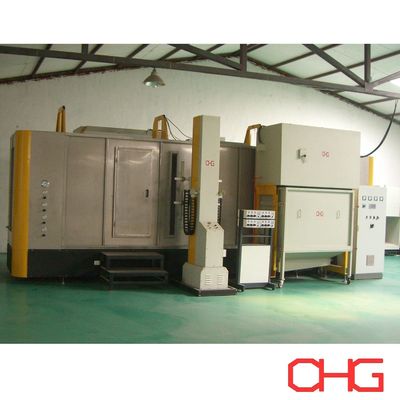

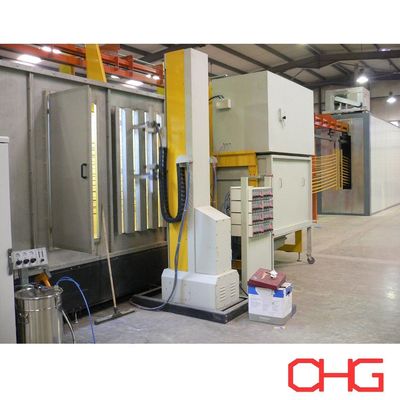

Electrostatic Powder Coating Equipment's Powder Recycler With Filter Element
System Components

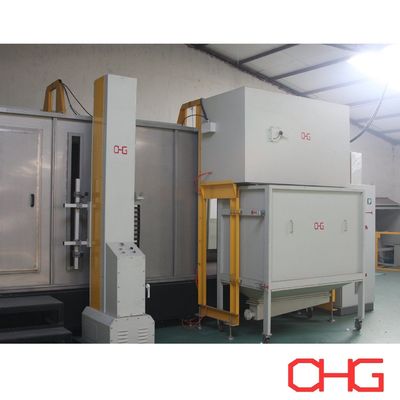

Upper Chamber with Recovery Fan:
Equipped with a high-efficiency recovery fan to ensure consistent airflow and powder collection performance.
Lower Movable Chamber for Filter Maintenance:
The lower section features a sliding or lift-up mechanism, providing convenient access for filter inspection and replacement.
Flexible Sealing Interface:
A reinforced, flexible sealing connection between chambers ensures airtight operation and prevents powder leakage.
Two-Stage Filtration System:
Primary Filter: Durable polyester cartridge with waterproof and anti-static properties for efficient particulate capture.
Secondary Exhaust Filter: High-efficiency final filter that ensures clean air discharge.
Performance Indicators:
Maximum exhaust emission concentration: ≤10 mg/m³
Operational noise level: <85 dB
The integrated pulse-jet cleaning unit automatically removes powder buildup from the filter surface, maintaining optimal filtration performance.
Includes:
Intelligent electronic control panel
Pulse membrane valves for precise compressed air release and extended filter life
Recovered powder particles are directed into the collection hopper, from which a transfer pump conveys the material to the electric sieving unit for screening and reconditioning.
This closed-loop system minimizes waste and maximizes powder reuse efficiency.
| No. | Item | Parameter and description |
| 1 | Model | CHG-HS-7000 |
| 2 | Number of filter element | 5 pieces |
| 3 | Specification of filter element | ∮325×660mm |
| 4 | Material of filter element | waterproof polyester |
| 5 | Filter precision of filter element | 5μm |
| 6 | Model of fan | 4-72-4.0A |
| 7 | Model of motor | Y132S1-2-5.5kW 3~380V 50Hz |
| 8 | Recycling air | 6500m3/h |
| 9 | Cleaning form of filter element | Pulse automatic blowback |
| 10 | Voltage of blowback valve | DC24V |
| 11 | Blowback pressure | 0.4~0.5MPa |
| 12 | Sealing way between upper and lower box of saver | Air sealing |
| 13 | Moving way of lower box of saver | Manual movement |
