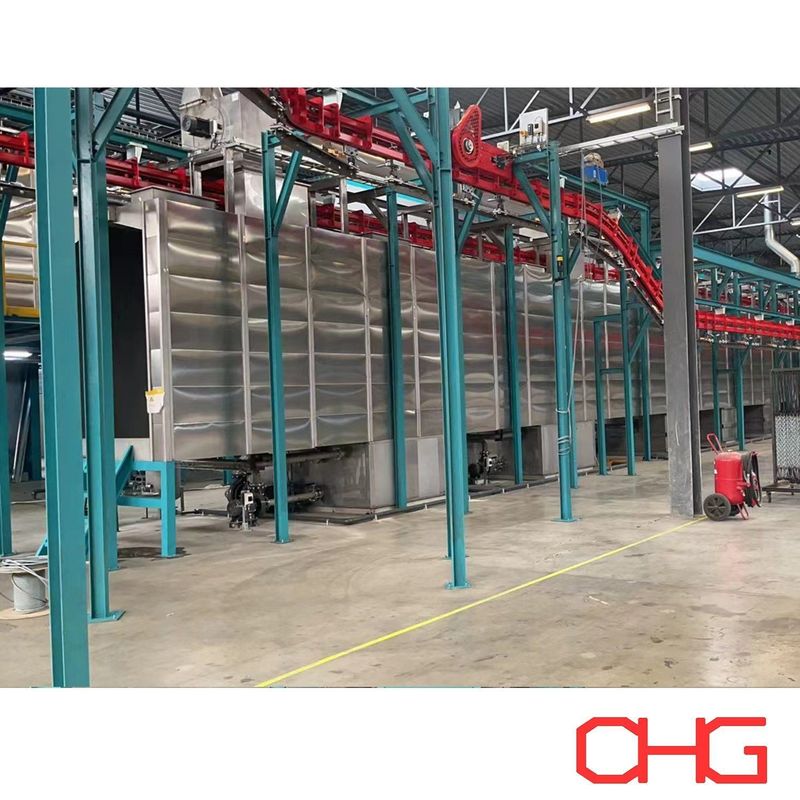

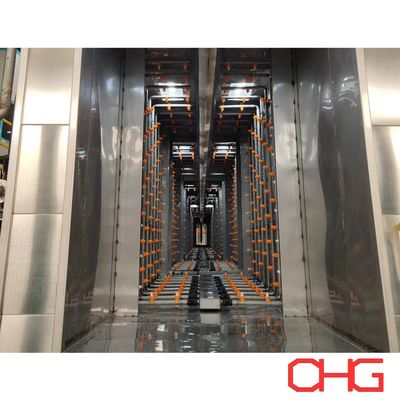

Environmentally Friendly Spray System for Coating Production Line

Environmentally Friendly Spray System for Coating Production Line

Tên thương hiệu: CHG
Số mẫu: PR-PSS-01
MOQ: 1 bộ
giá bán: 100,000-200,000 USD
Điều khoản thanh toán: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Khả năng cung cấp: 100 bộ mỗi năm
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
CE
Mẫu số:
PR-PSS-01
Loại vòi phun:
Vòi phun hình quạt
Tình trạng:
MỚI
Thể loại:
Dây chuyền sản xuất lớp phủ
Nhãn hiệu:
Chg
Mã HS:
8424899100
Tùy chỉnh:
Có sẵn
Bảo hành:
1 năm
chi tiết đóng gói:
Thay đổi tùy thuộc vào thiết kế
Mô tả sản phẩm
Metal Surface Pretreatment Equipment Spray System for Powder Coating Production Line

Spray pretreatment serves as a vital preliminary stage in the coating production process, during which the surface of each workpiece is meticulously cleaned and conditioned prior to coating application. The primary objective of this process is to improve coating adhesion and enhance long-term durability, resulting in a consistent, high-performance surface finish.

Several spray pretreatment techniques are utilized across modern coating lines, each designed to meet specific material and performance requirements. Common methods include various chemical cleaning, degreasing, and conversion treatments, tailored to ensure optimal surface readiness for the subsequent coating stage.


Degreasing During the initial phase, a specialized cleaning agent is sprayed onto the surface of the workpiece to eliminate oils, grease, and other surface contaminants. Effective degreasing is critical, as it ensures optimal surface cleanliness and promotes strong coating adhesion in subsequent stages.
Phosphating In this chemical treatment stage, the workpiece is sprayed with a phosphate-based solution that forms a thin, tightly bonded conversion layer. This phosphate coating enhances both the adhesion of the applied paint film and the corrosion resistance of the finished product.
Rinsing Following each pretreatment step, the workpiece undergoes a thorough water rinse to remove any residual chemicals. This step prevents contamination between stages and prepares the surface for the next process in the sequence.
Surface Conditioning Certain pretreatment systems incorporate a surface conditioning phase, where the workpiece is subjected to mild abrasion or mechanical activation. This process slightly roughens the surface, improving coating anchorage—particularly beneficial for challenging materials or complex geometries.
Drying Before coating application, the workpieces are dried completely to eliminate moisture and ensure a clean, stable surface. Proper drying is essential for achieving a uniform, defect-free coating layer with maximum durability.


Customization Option
The spray pretreatment system can be fully customized according to your specific process requirements, ensuring optimal performance and compatibility with your production line.
