| Tên thương hiệu: | CHG |
| Số mẫu: | AC-06 |
| MOQ: | 1 bộ |
| giá bán: | 100,000-300,000 USD |
| Điều khoản thanh toán: | Moneygram, T/T, Liên minh phương Tây, D/A, D/P, L/C. |
| Khả năng cung cấp: | 10 bộ mỗi năm |
This production line is specifically engineered for the powder coating of automotive oil filter housings made from galvanized sheet metal. The system adopts automatic electrostatic powder spraying, and the spray booth is constructed from high-quality PP (polypropylene) for excellent corrosion resistance and extended service life. Material conveying is handled by a monorail floor conveyor, ensuring stable and efficient part movement throughout the production process.
To further enhance coating quality and operational efficiency, the line integrates a new anti-static powder spray booth and recovery system, and features an upgraded curing oven to meet the performance demands of powder coating galvanized components.

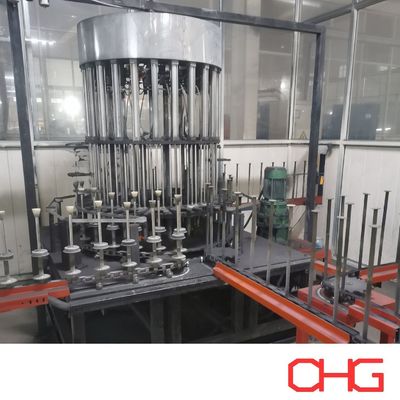

The ground chain conveyor serves as the main transport mechanism for the filter housings, offering:
Smooth, continuous, and controlled movement through all process stages
Stable handling tailored to the shape and size of the oil filter housings
Adjustable fixture designs to accommodate various housing dimensions
This robust system ensures reliable, consistent material flow and supports high-volume production.
Before powder application, the galvanized housings undergo a complete pretreatment sequence that may include:
Cleaning
Degreasing
Rinsing
Conversion coating (optional, depending on client requirements)
This ensures optimal surface preparation, enhancing coating adhesion, corrosion resistance, and overall coating durability.
For applications requiring multiple coating layers—such as primer, base coat, and top coat—the conveyor system enables seamless transfer between stages. This ensures:
Uniform powder application
High coating consistency
Superior aesthetic and protective performance
The production line incorporates high-efficiency powder spray booths made of corrosion-resistant PP material. Features include:
Automatic powder guns for precise and even powder distribution
Optional manual touch-up stations
Smooth airflow design to minimize contamination and overspray

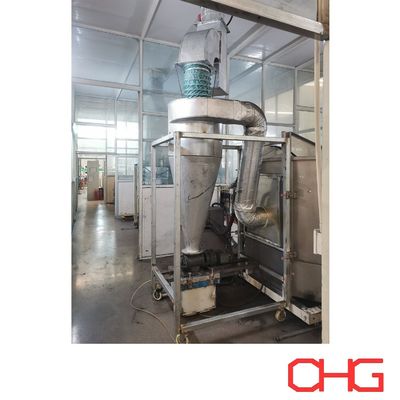

To maximize material utilization and reduce operating costs, the system includes:
Anti-static powder recovery equipment
Cyclone or filter-based powder separation
Efficient recirculation to reuse recovered powder
This setup significantly improves powder usage efficiency and reduces waste.

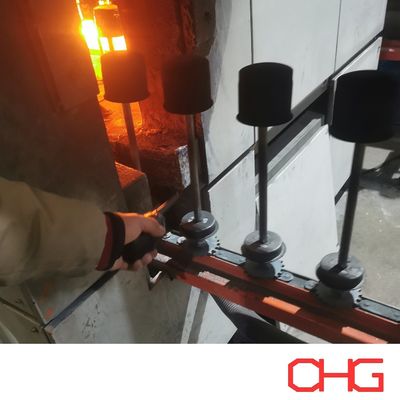

After the powder is applied, parts enter the curing oven where:
Controlled heating ensures proper melting, leveling, and crosslinking
The final film achieves excellent hardness, adhesion, and corrosion resistance
Oven parameters are optimized for galvanized substrates
The upgraded oven design ensures stable temperature distribution and efficient curing results.
Integrated automation systems enable precise control over:
Conveyor speed
Powder output and spray patterns
Booth airflow management
Oven temperature and dwell times
These controls ensure consistent, repeatable coating quality and simplify production management.
By combining a durable ground chain conveyor with advanced powder coating technologies, this production line delivers:
Uniform, high-performance coatings
Enhanced corrosion protection
Reduced powder waste
Stable and continuous production efficiency
This system is ideal for manufacturers requiring consistent, high-quality coating performance for automotive oil filter housing components.
